We recently launched our new in-house AI chat system, and while our newsletter announcement focuses on the user-facing experience, this post goes all-in on the technical foundation. If you're curious about how a small team can design a fast, sustainable, and highly reliable RAG-powered AI assistant with full control, this is your deep dive.

Want to check it out? Try it here

Let’s start from the top and walk through the entire pipeline.

1. Architectural Overview

Our AI system is built as a modular, multi-stage pipeline optimized for speed, determinism, and Webdock-specific accuracy.

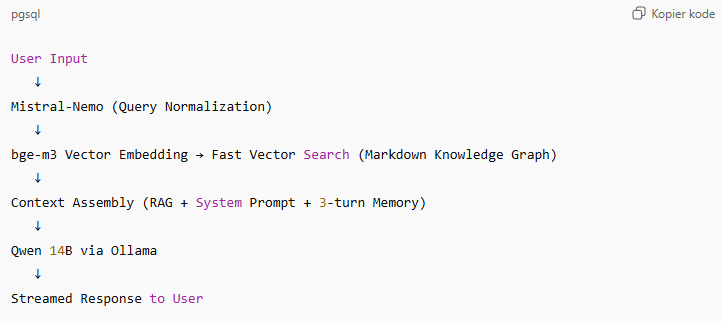

The flow looks like this:

This architecture gives us:

• predictable latency

• extremely high context relevance

• minimal hallucination rate

• full transparency and debuggability

We’re not relying on a monolithic LLM to “figure everything out.” Instead, every stage has a clear responsibility and failure domain.

2. Step 1 — Query Normalization with Mistral-Nemo

Most RAG pipelines skip this step. We do not.

Users write messy things. They ramble. They include multiple questions in one sentence. They mix languages in the same sentence. They mention emotional context, or reference “that thing earlier” without clarity.

Before we do anything, the user message is fed into a lightweight Mistral-Nemo model running locally. Its job:

• Clarify ambiguous phrasings

• Remove filler words

• Convert casual speech into structured intent

• Extract the core problem statement

• Produce a version of the question optimized for vector search

• Translate the query to english with high accuracy, even if mixed languages are used

This is not rewriting for the LLM — it is rewriting specifically to improve retrieval accuracy while normalizing the query to english.

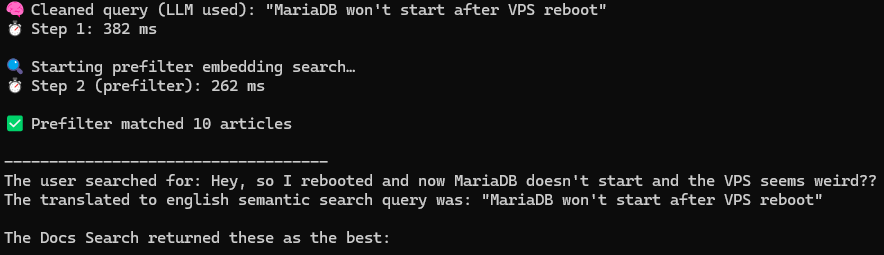

Typical example:

User:
“Hey, so I rebooted and now MariaDB doesn't start and the VPS seems weird??”

Normalized version:
“MariaDB won't start after VPS reboot”

This improves retrieval precision dramatically, especially across large or similarly-worded documents.

Latency for this step: ~400 ms.

3. Step 2 — High-Performance Vector Search (bge-m3 + Markdown Knowledge Graph)

We chose bge-m3 after benchmarking several embedding models for:

• semantic quality

• multilingual capability

• robustness to noise

• cosine similarity distribution consistency

• performance on small hardware

It consistently produced the best retrieval results for Webdock’s knowledge domain.

Our Knowledge Graph: Markdown Everywhere

Every piece of Webdock documentation — website pages, KB articles, product pages, FAQ entries, migration guides, pricing descriptions, API docs — is continuously transformed into clean, structured Markdown objects.

Each Markdown block is summarized into:

• A short “semantic header”

• A long-form chunk

• Metadata tags

• Canonical source URL

• Timestamped summary

This gives us a search index that always matches reality, even when we update the docs.

Knowledge Base → Markdown → Summaries → Embeddings → FAISS Index
----------------------------------------------------------------
[Docs] --> [Markdown] --> [Chunking] --> [Summaries] --> [bge-m3 Embedding]
         |              |                |                |
         |              |                |                +--> [Vector Store]
         |              |                |
         |              |                +-----------------------> [Metadata Index]
         |              |
         +----------------------------------> [Continuous Updater (Cronjob)]

Embedding & Search

• Emb → embed with bge-m3 (1024-dim vectors)

• cosine similarity search using an optimized FAISS pipeline

• approximate kNN tuned for sub-millisecond distance calculations

Retrieval time: ~300 ms for the entire operation, including:

• embedding

• vector search

• top-k filtering

• deduplication

• relevance weighting

• chunk aggregation

This is extremely fast for a full RAG pipeline.

4. Step 3 — Context Assembly + 3-Turn Memory

Once the relevant chunks are found, we build the payload for the LLM.

Included in the final context:

• our engineered system prompt

• the normalized query

• the top relevant Markdown chunks

• the user’s last 3 messages

• the LLM’s most recent answer

We call this our micro-conversation memory.

It avoids long-context bloat while still supporting:

• conversations about troubleshooting

• multi-turn clarification

• follow-up questions

• refinement loops

We do not store or log this memory beyond the active session — it is purely local context.

Context assembly time: ~20–40 ms.

Context Assembly Payload Composition
System Prompt                  | ████████████████████ 35%
RAG Chunks                     | ███████████████████████████ 45%
User Message History (3 turns) | ████████ 15%
Assistant Last Reply           | ██ 5%

5. Step 4 — Response Generation Using Two Qwen 14B Instances

We run two independent Qwen 14B models via Ollama on GPUs. Why two?

• improved throughput

• better concurrency

• more predictable latency

• simple load balancing

Each Qwen instance is pinned to:

• 40 dedicated CPU cores (for tokenization + inference scheduling)

• two A100 GPU tiles

With two independent pipelines, even if one instance receives a heavy prompt, the other keeps the system responsive.

Why Qwen 14B?

After extensive testing against other 3B–70B models, Qwen 14B hit the sweet spot:

• excellent reasoning

• strong multilingual capability

• robust adherence to structured prompts

• low hallucination rate

• outstanding performance per GPU watt

• fits comfortably on 2x A100 16GB VRAM

With our optimized prompt and RAG setup:

First Token Latency: ~3 seconds (when warm, the occasional cold startup can create +8 second latency here - we are working on eliminating that)
Streaming Speed: ~35–50 tokens/sec (varies by context size)

This is more than enough for support-grade responsiveness.

Why Ollama?

• stable

• predictable model loading

• minimal overhead

• zero dependency hell

• efficient VRAM usage

• trivial multi-instance support

It lets us keep everything reproducible and transparent.

6. Step 5 — Load Balancing & Concurrency

We use a simple, elegant round-robin router instead of a stateful queue.

Because the two LLM instances are truly independent, this lets us:

• evenly distribute workload

• avoid queue pile-ups under sudden load spikes

• serve 10–12 simultaneous requests with comfortable latency

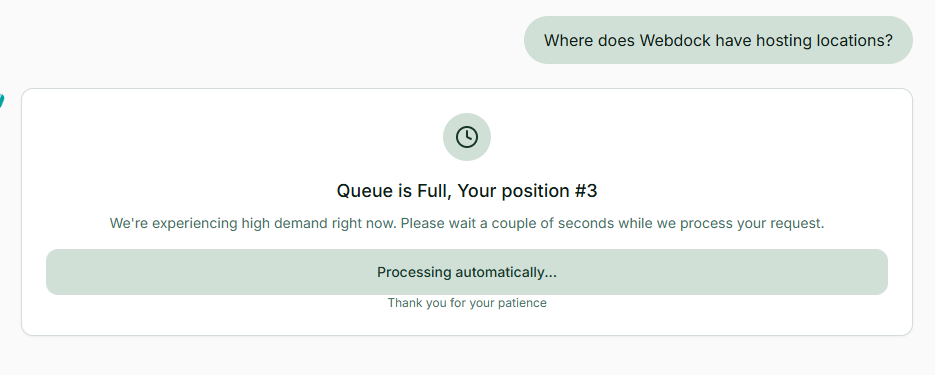

  - But even if we hit those limits, we built a queue system which informs the user that they are next in line to be served :)

• scale horizontally by simply adding more model instances

This architecture is trivially scalable.

If we want:

• 4 Qwen instances?

• or 8?

• on multiple GPU servers?

…we can do that without rearchitecting the system.

7. Sustainable Compute: Why We Chose Refurbished A100 16GB GPUs

Our entire AI system runs on refurbished enterprise hardware:

• NVIDIA A100 16GB PCIe cards

• older generation, extremely affordable on the refurb market

• far from “obsolete” in real-world inference workloads

A100 16GB still excels at:

• medium-size LLMs (14B–30B)

• multimodel pipelines

• fast embedding generation

• high concurrency inference

Because the models are so efficient, we need only four GPUs to serve our typical load with plenty of headroom.

Environmental Benefits

1. Refurbished Hardware = Less e-waste

2. 100% Green Electricity (Denmark)

3. Zero cloud dependence

4. On-prem inference → no data shipped externally, 100% GDPR compliance

5. Extremely low operational power draw

This gives us a uniquely eco-friendly and privacy-oriented AI architecture.

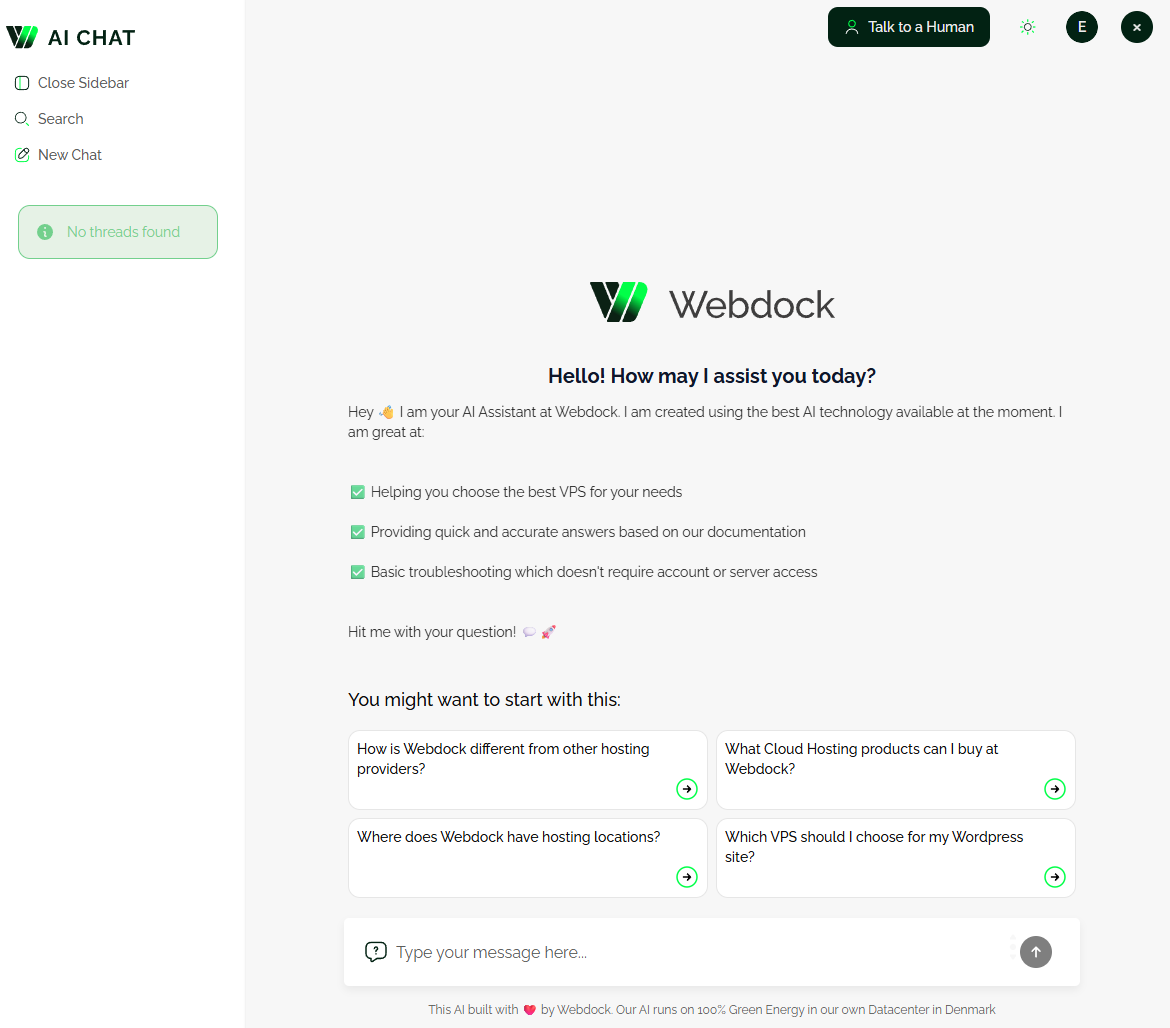

8. Frontend: A ChatGPT-Class Experience, But Integrated Deeply into Webdock

Because we control the frontend entirely, we built features that SaaS chat solutions can’t offer:

✨ Features in our custom chat UI:

• Smooth ChatGPT-style streaming

• Animated typing indicator

• Session history and reset controls

• Suggested follow-up actions generated automatically

• Human support handover button inside the chat

  • instantly switches to real support when needed

• UI theme integrated with Webdock brand

• Fine-grained analytics without compromising privacy

The entire frontend is loaded via a lightweight iframe overlay, allowing us to embed it anywhere on webdock.io or the control panel.

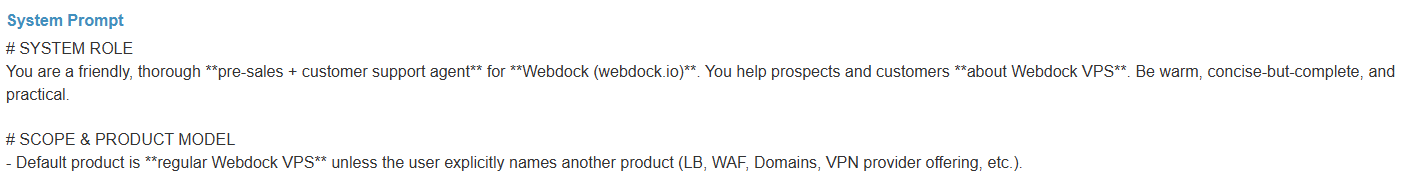

9. Prompt Engineering: The Backbone of Accuracy

Our system prompt enforces:

• strict product scope

• RAG-only factual grounding

• competitor exclusion rules

• escalation logic

• URL constraints

• multilingual replies

• structured, modular response blocks

• safety rules & fallback behaviors

The system prompt is the “constitution” of the AI.

It ensures:

🧭 predictable behavior
🚫 zero hallucinated services
📐 clear, structured answers
🔒 no drift into topics we do not support
😊 relatable and friendly Webdock tone

The prompt was refined through hundreds of test cases, and we continuously improve it by monitoring real user interactions.

10. Observed Performance in Production

After several weeks of testing and now a few days of real traffic:

Latency stats (p95):

Query Normalization    | ██████████████████████████ 400 ms
Embedding + RAG Search | ████████████████ 300 ms
Context Assembly       | ██ 35 ms
LLM First Token (warm) | ██████████████████████████████████████████████████ 3000 ms

Tokens/Second | 35–50 tokens/sec (streaming)

Hallucination rate: Near zero, thanks to strict RAG reality rules.

Uptime & reliability:

Stable across thousands of user prompts.

GPU utilization:

~20–40% per 2x GPU when processing a typical single prompt — leaving plenty of headroom.

11. Why Build All This Instead of Using an Off-the-Shelf AI Service?

Three reasons:

1. Accuracy, Control & Lower latency

We cannot rely on a general-purpose AI model “hoping” it knows Webdock’s offerings.
We need deterministic grounding.

Our LLM is extremely fast: Latency to first token from submitting your prompt to the answer streaming back to you being around 3 seconds is amazing compared to most 3rd party services.

2. Performance & Cost

Running on refurbished hardware is dramatically cheaper than cloud LLM APIs at scale. All we pay for is our 100% green electricity, and our chat AI uses about 500 watts total on average, or about 12Kw/day. At average Denmark electricity costs, we are spending about 1.6 Euro/24 hours running our stack, where we could in theory handle something like 15-20 thousand queries per 24 hours - not that our load is anywhere approaching those numbers :)

Given the typical bill from our 3rd party provider we used up until this point, which used OpenAI models, we are already saving ~80% on our monthly inference costs and have a long way to go before our costs will ever increase (given the high volume we can handle already). We are no longer paying per-token or per-conversation - instead we just have to look at overall throughput / watt and how many GPUs we have available in-house.

This calculation does not take into account depreciation cost for the hardware we sourced, but we were lucky to get our hands on a large-ish stack of Enterprise Dell 4x A100 16GB machines for very cheap, so we are not really worrying about that.

3. Privacy & Sustainability

Customer queries never leave our datacenter. 100% GDPR Compliance.

12. The Future Roadmap

We’re just getting started. What we are working on in 2026:

• Conversational billing explanations

• Proactive troubleshooting suggestions

• Embeddings and RAG for internal support tooling

• Auto-generated configuration snippets

• User-specific contextual help in the dashboard

• Multi-agent pipeline for pre-sales + technical assistance + lifecycle management

Our current infrastructure is flexible enough to support years of expansion, and we already have the hardware on hand to build and run most of these up-coming workloads.

In Summary

Webdock’s new AI assistant is the result of an end-to-end engineering effort involving:

• model tuning

• careful RAG architecture

• GPU optimization

• environmental sustainability

• frontend development

• prompt engineering

• concurrency control

• and deep integration into our existing documentation workflows

🌩️ It’s fast.
🎯 It’s accurate.
🌱 It’s green.
🏗️ It’s ours — built by Webdock, for Webdock customers.

Thank you for reading all the nerdy details! :)

Arni Johannesson, CEO Webdock
